Details
- •Low-voltage industrial components

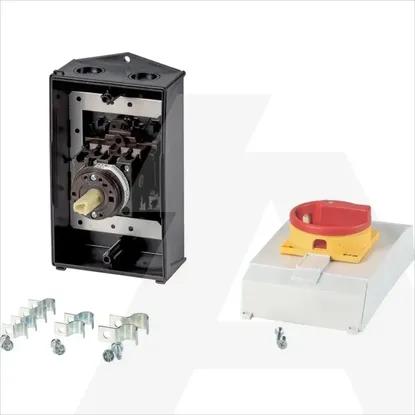

- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Height181mm
Rated operation power at AC-3, 400 V5.5kW
Width100mm
Depth136mm
Suitable for intermediate mountingNo
Number of poles4
InterlockableYes
Type of electrical connection of main circuitScrew connection
Rated permanent current Iu20A
Version as safety switchNo
Suitable for floor mountingYes
Number of switches1
Rated operating voltage690 - 690V
Suitable for distribution board installationNo
Suitable for front mounting centreNo
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-23, 400 V5.5kW
Type of control elementDoor coupling rotary drive
Number of auxiliary contacts as change-over contact0
Rated short-time withstand current lcw0.32kA
Version as maintenance-/service switchYes
Version as main switchYes
Version as emergency stop installationYes
Suitable for front mounting 4-holeNo
Conditioned rated short-circuit current Iq6kA
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Degree of protection (IP), front sideIP65
Colour control elementRed
Max. rated operation voltage Ue AC690V
Motor drive optionalNo
Voltage release optionalNo
Device constructionComplete device in housing
With pre-assembled cablingNo
Switching power at 400 V5.5kW
Degree of protection (NEMA)12
Rated permanent current at AC-23, 400 V13.3A
Rated permanent current at AC-21, 400 V20A
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
T0-2-8900/I2H/MBS/SVB
