Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Rated operation power at AC-3, 400 V5.5kW
Number of auxiliary contacts as normally open contact1
Depth136mm
Width100mm
Height181mm
Number of poles4
Number of auxiliary contacts as normally closed contact1
Rated permanent current Iu20A
Conditioned rated short-circuit current Iq6kA
Rated operating voltage690 - 690V
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP65
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Type of control elementDoor coupling rotary drive
Number of switches1
Version as emergency stop installationYes
InterlockableYes
Rated short-time withstand current lcw0.32kA
Version as safety switchNo
Version as main switchYes
Version as maintenance-/service switchYes
Colour control elementRed
Rated operation power at AC-23, 400 V5.5kW
Suitable for intermediate mountingNo
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Device constructionComplete device in housing
Suitable for floor mountingYes
Max. rated operation voltage Ue AC690V
Motor drive optionalNo
Voltage release optionalNo
Suitable for distribution board installationNo
Version as reversing switchNo
Degree of protection (NEMA)12
With pre-assembled cablingNo
Rated permanent current at AC-21, 400 V20A
Rated permanent current at AC-23, 400 V13.3A
Switching power at 400 V5.5kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

T0-3-15680/I2H/MBS/SVB

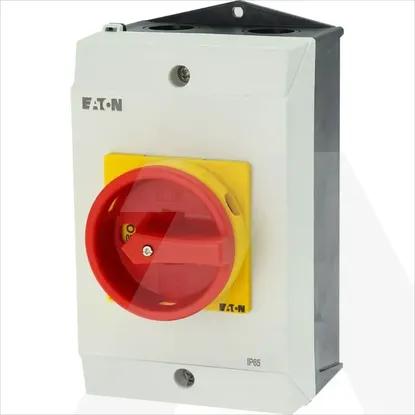

Main Product Image
