Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Width100mm
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact1
Rated operating voltage690 - 690V
Number of poles4
Rated operation power at AC-3, 400 V5.5kW
Version as emergency stop installationNo
Version as safety switchNo
Type of control elementDoor coupling rotary drive
Version as main switchYes
Depth136mm
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as change-over contact0
Number of switches1
InterlockableYes
Motor drive integratedNo
Rated permanent current Iu20A
Type of electrical connection of main circuitScrew connection
Conditioned rated short-circuit current Iq6kA
Height181mm
Suitable for floor mountingYes
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V5.5kW
Colour control elementBlack
Rated short-time withstand current lcw0.32kA
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Device constructionComplete device in housing
Suitable for distribution board installationNo
Rated permanent current at AC-21, 400 V20A
Motor drive optionalNo
Suitable for intermediate mountingNo
Max. rated operation voltage Ue AC690V
Voltage release optionalNo
Switching power at 400 V5.5kW
Degree of protection (NEMA)12
Rated permanent current at AC-23, 400 V13.3A
With pre-assembled cablingNo
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

T0-3-15680/I2H/MBS/SVB-SW

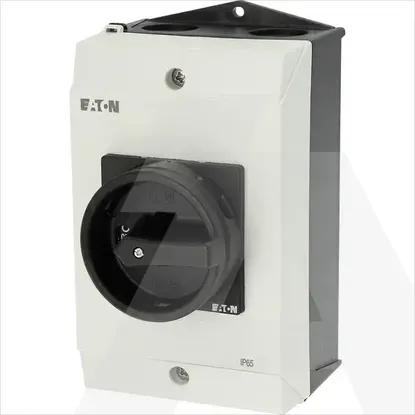

Main Product Image
