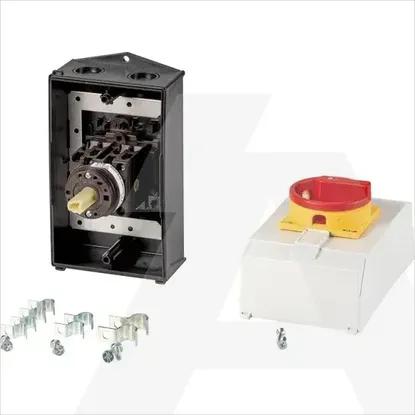

T0-3-15683/I2H/MBS/SVB
Code: 1639543
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as maintenance-/service switchYes
Version as emergency stop installationYes
Version as reversing switchNo
Version as safety switchNo
Version as main switchYes
Max. rated operation voltage Ue AC690V
Number of switches1
Rated operating voltage690 - 690V
Rated permanent current at AC-23, 400 V13.3A
Switching power at 400 V5.5kW
Number of poles3
Conditioned rated short-circuit current Iq6kA
Number of auxiliary contacts as normally closed contact1
Motor drive optionalNo
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
Rated permanent current Iu20A
Number of auxiliary contacts as normally open contact2
Rated permanent current at AC-21, 400 V20A
Rated operation power at AC-23, 400 V5.5kW
Rated short-time withstand current lcw0.32kA
Rated operation power at AC-3, 400 V5.5kW
Device constructionComplete device in housing
Voltage release optionalNo
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
Suitable for distribution board installationNo
Suitable for front mounting centreNo
Suitable for intermediate mountingNo
Type of control elementDoor coupling rotary drive
Colour control elementRed
InterlockableYes
Type of electrical connection of main circuitScrew connection
With pre-assembled cablingNo
Height181mm
Width100mm
Degree of protection (NEMA)12
Degree of protection (IP), front sideIP65
Depth136mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
T0-3-15683/I2H/MBS/SVB
Details
- Low-voltage industrial components
- Switch disconnector (low voltage)
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Version as maintenance-/service switch
Version as emergency stop installation
Version as reversing switch
Version as safety switch
Version as main switch
Max. rated operation voltage Ue AC
690V
Number of switches
1
Rated operating voltage
690 .. 690V
Rated permanent current at AC-23, 400 V
13.3A
Switching power at 400 V
5.5kW
Number of poles
3
Conditioned rated short-circuit current Iq
6kA
Number of auxiliary contacts as normally closed contact
1
Motor drive optional
Motor drive integrated
Number of auxiliary contacts as change-over contact
0
Rated permanent current Iu
20A
Number of auxiliary contacts as normally open contact
2
Rated permanent current at AC-21, 400 V
20A
Rated operation power at AC-23, 400 V
5.5kW
Rated short-time withstand current lcw
0.32kA
Rated operation power at AC-3, 400 V
5.5kW
Device construction
Complete device in housing
Voltage release optional
Suitable for front mounting 4-hole
Suitable for floor mounting
Suitable for distribution board installation
Suitable for front mounting centre
Suitable for intermediate mounting
Type of control element
Door coupling rotary drive
Colour control element
Red
Interlockable
Type of electrical connection of main circuit
Screw connection
With pre-assembled cabling
Height
181mm
Width
100mm
Degree of protection (NEMA)
12
Degree of protection (IP), front side
IP65
Depth
136mm
