Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Depth136mm
Rated operation power at AC-3, 400 V5.5kW
Width100mm
Height181mm
Number of auxiliary contacts as normally open contact2
Rated permanent current Iu20A
Number of auxiliary contacts as normally closed contact1
Degree of protection (IP), front sideIP65
Number of poles3
Rated operating voltage690 - 690V
Type of electrical connection of main circuitScrew connection
Conditioned rated short-circuit current Iq6kA
Motor drive integratedNo
Version as emergency stop installationNo
Number of switches1
InterlockableYes
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchYes
Version as main switchYes
Suitable for front mounting 4-holeNo
Rated operation power at AC-23, 400 V5.5kW
Suitable for intermediate mountingNo
Colour control elementBlack
Suitable for front mounting centreNo
Suitable for floor mountingYes
Rated short-time withstand current lcw0.32kA
Version as safety switchNo
Suitable for distribution board installationNo
Type of control elementDoor coupling rotary drive
Motor drive optionalNo
Voltage release optionalNo
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-21, 400 V20A
Device constructionComplete device in housing
Version as reversing switchNo
Rated permanent current at AC-23, 400 V13.3A
Switching power at 400 V5.5kW
Degree of protection (NEMA)12
With pre-assembled cablingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

T0-3-15683/I2H/MBS/SVB-SW

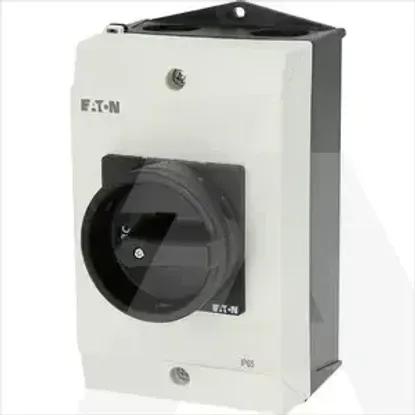

Main Product Image
