Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Max. rated operation voltage Ue AC690V
Version as main switchYes
Version as safety switchNo
Version as emergency stop installationYes
Number of switches1
Version as maintenance-/service switchYes
Rated operating voltage690 - 690V
Rated permanent current Iu20A
Rated permanent current at AC-23, 400 V13.3A
Version as reversing switchNo
Switching power at 400 V5.5kW
Rated permanent current at AC-21, 400 V20A
Rated operation power at AC-23, 400 V5.5kW
Conditioned rated short-circuit current Iq6kA
Number of auxiliary contacts as normally open contact1
Rated operation power at AC-3, 400 V5.5kW
Number of poles6
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact1
Rated short-time withstand current lcw0.32kA
Motor drive integratedNo
Voltage release optionalNo
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
Device constructionComplete device in housing
Suitable for front mounting centreNo
Motor drive optionalNo
Suitable for distribution board installationNo
Colour control elementRed
Suitable for intermediate mountingNo
Type of control elementDoor coupling rotary drive
InterlockableYes
Type of electrical connection of main circuitScrew connection
With pre-assembled cablingNo
Degree of protection (IP), front sideIP65
Degree of protection (NEMA)12
Width100mm
Height181mm
Depth136mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

T0-4-15682/I2H/MBS/SVB

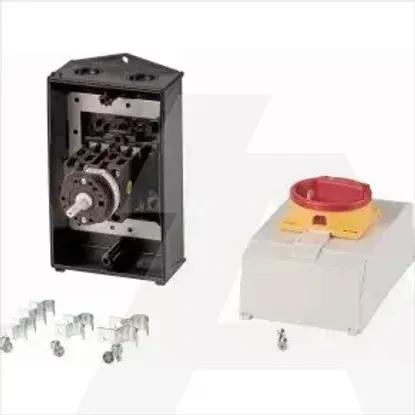

Main Product Image
