Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Depth136mm
Number of auxiliary contacts as normally open contact1
Width100mm
Type of electrical connection of main circuitScrew connection
Rated operating voltage690 - 690V
Degree of protection (IP), front sideIP65
Conditioned rated short-circuit current Iq6kA
Number of auxiliary contacts as normally closed contact1
Motor drive integratedNo
Version as emergency stop installationNo
InterlockableYes
Height181mm
Number of auxiliary contacts as change-over contact0
Rated permanent current Iu20A
Number of switches1
Number of poles6
Version as maintenance-/service switchYes
Version as main switchYes
Rated operation power at AC-3, 400 V5.5kW
Version as safety switchNo
Type of control elementDoor coupling rotary drive
Rated operation power at AC-23, 400 V5.5kW
Rated short-time withstand current lcw0.32kA
Suitable for front mounting centreNo
Suitable for floor mountingYes
Suitable for distribution board installationNo
Degree of protection (NEMA)12
Device constructionComplete device in housing
Switching power at 400 V5.5kW
Rated permanent current at AC-21, 400 V20A
Rated permanent current at AC-23, 400 V13.3A
Voltage release optionalNo
Version as reversing switchNo
Max. rated operation voltage Ue AC690V
With pre-assembled cablingNo
Suitable for intermediate mountingNo
Colour control elementBlack
Motor drive optionalNo
Suitable for front mounting 4-holeNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

T0-4-15682/I2H/MBS/SVB-SW

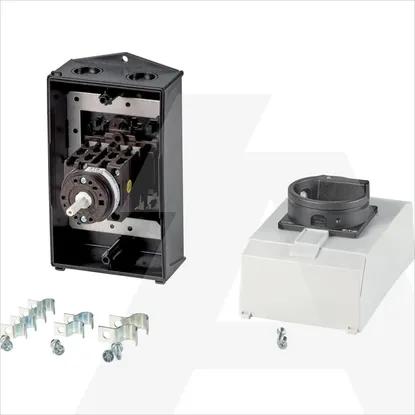

Main Product Image
