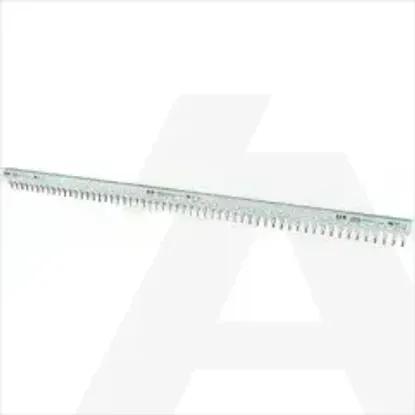

Z-BB/UL25/3P1MU/57
Code: 1639868
ManufacturerEaton
Catalog number171133
TypeZ-BB/UL25/3P1MU/57
CategoryPhase busbar
EAN code4015081676231
Details
- •Low-voltage industrial components
- •Phase busbar
- •1 KOM
- •EATON
Technical specifications
InsulatedYes
Width in number of modular spacings1
ColourOther
Rated surge voltage10kV
Type of electric connectionPin
Conditioned rated short-circuit current Iq0kA
Max. rated operation voltage Ue600V
Can be cut to sizeYes
Suitable for devices with auxiliary switchNo
Suitable for devices with N-conductorNo
Suitable for number of devices0
Rated short-time withstand current lcw0kA
Module width17.6mm
Number of phases3
Cross section25mm²
Rated permanent current Iu100A
Number of poles3
Length1009.8mm
