Details
- •Sensors
- •End switch
- •1 KOM
- •EATON
Technical specifications
Rated operation current Ie at DC-13, 230 V0.3A
Suitable for safety functionsYes
Coating housingOther
Switching functionQuick-break switch
Rated operation current Ie at AC-15, 230 V6A
Material housingPlastic
With status indicationNo
Degree of protection (IP)IP66
Explosion safety category for dustNone
Type of interface for safety communicationNone
Type of electric connectionConnector M12
Construction type housingCuboid
Explosion safety category for gasNone
Type of interfaceNone
Number of safety auxiliary contacts1
Rated operation current Ie at AC-15, 125 V6A
Type of control elementAdjustable rotary lever
Output electronicNo
Rated operation current Ie at DC-13, 24 V3A
Rated operation current Ie at AC-15, 24 V6A
Forced openingYes
Rated operation current Ie at DC-13, 125 V0.6A
Diameter sensor0mm
Number of contacts as normally closed contact1
Alignment of the control elementRoller cam crossed
Height of sensor86mm
Ambient temperature during operating-25 - 70°C
Number of contacts as normally open contact1
Length of sensor33.5mm
Number of contacts as change-over contact0
Width sensor31mm
Degree of protection (NEMA)Other
Switching function latchingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

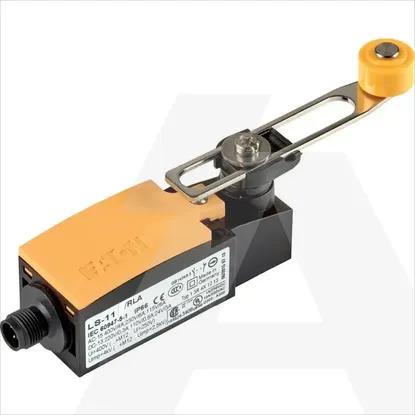

LS-11S/RLA-M12A
