Details
- •Sensors
- •End switch
- •1 KOM
- •EATON
Technical specifications
Rated operation current Ie at DC-13, 230 V0.3A
Switching functionQuick-break switch
Rated operation current Ie at AC-15, 230 V6A
Material housingPlastic
Suitable for safety functionsYes
Explosion safety category for dustNone
With status indicationNo
Type of electric connectionConnector M12
Construction type housingCuboid
Explosion safety category for gasNone
Type of interface for safety communicationNone
Coating housingOther
Type of control elementSpring-rod
Type of interfaceNone
Rated operation current Ie at DC-13, 125 V0.6A
Diameter sensor0mm
Height of sensor86mm
Output electronicNo
Width sensor31mm
Forced openingYes
Rated operation current Ie at AC-15, 125 V6A
Number of safety auxiliary contacts1
Switching function latchingNo
Length of sensor33.5mm
Rated operation current Ie at DC-13, 24 V3A
Degree of protection (IP)IP66
Rated operation current Ie at AC-15, 24 V6A
Number of contacts as normally open contact1
Number of contacts as change-over contact0
Alignment of the control elementRoller cam crossed
Number of contacts as normally closed contact1
Degree of protection (NEMA)Other
Ambient temperature during operating-25 - 70°C
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

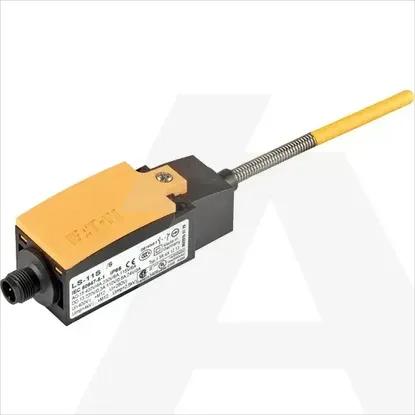

LS-11S/S-M12A
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sensors
- End switch
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Rated operation current Ie at DC-13, 230 V
0.3A
Switching function
Quick-break switch
Rated operation current Ie at AC-15, 230 V
6A
Material housing
Plastic
Suitable for safety functions
Explosion safety category for dust
None
With status indication
Type of electric connection
Connector M12
Construction type housing
Cuboid
Explosion safety category for gas
None
Type of interface for safety communication
None
Coating housing
Other
Type of control element
Spring-rod
Type of interface
None
Rated operation current Ie at DC-13, 125 V
0.6A
Diameter sensor
0mm
Height of sensor
86mm
Output electronic
Width sensor
31mm
Forced opening
Rated operation current Ie at AC-15, 125 V
6A
Number of safety auxiliary contacts
1
Switching function latching
Length of sensor
33.5mm
Rated operation current Ie at DC-13, 24 V
3A
Degree of protection (IP)
IP66
Rated operation current Ie at AC-15, 24 V
6A
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Alignment of the control element
Roller cam crossed
Number of contacts as normally closed contact
1
Degree of protection (NEMA)
Other
Ambient temperature during operating
-25 .. 70°C
