Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Width71mm
Number of auxiliary contacts as normally closed contact0
Number of switches1
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu25A
Rated operating voltage690 - 690V
Depth340mm
Conditioned rated short-circuit current Iq80kA
Version as main switchYes
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-3, 400 V7.5kW
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationNo
Degree of protection (IP), front sideIP65
InterlockableYes
Height70mm
Type of control elementDoor coupling rotary drive
Number of poles4
Colour control elementGrey
Suitable for floor mountingYes
Version as maintenance-/service switchYes
Rated short-time withstand current lcw0.64kA
Version as safety switchNo
Rated operation power at AC-23, 400 V13kW
Motor drive optionalNo
Suitable for front mounting 4-holeNo
Suitable for distribution board installationNo
Rated permanent current at AC-21, 400 V25A
Suitable for intermediate mountingYes
Degree of protection (NEMA)12
Voltage release optionalNo
Suitable for front mounting centreNo
Device constructionBuilt-in device fixed built-in technique
Switching power at 400 V13kW
Version as reversing switchNo
Max. rated operation voltage Ue AC690V
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V25A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

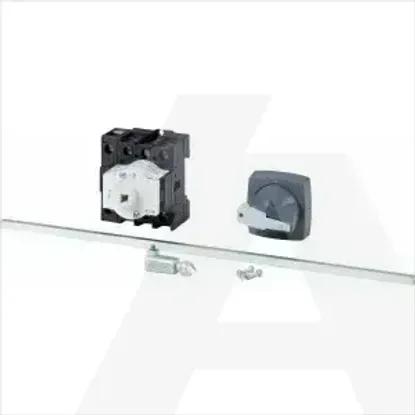

P1-25/M4/K1-PG/N
