Details

  • •Low-voltage industrial components
  • •Switch disconnector
  • •1 KOM
  • •EATON

Technical specifications

Number of poles3
Type of control elementDoor coupling rotary drive
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact1
Rated permanent current Iu25A
Motor drive optionalNo
Motor drive integratedNo
Device constructionBuilt-in device fixed built-in technique
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-3, 400 V7.5kW
Degree of protection (NEMA)Other
Degree of protection (IP), front sideIP65
Suitable for floor mountingYes
Suitable for intermediate mountingYes
Suitable for distribution board installationNo
Conditioned rated short-circuit current Iq80kA
Rated operating voltage690 - 690V
Max. rated operation voltage Ue AC690V
Version as emergency stop installationYes
Version as reversing switchNo
Voltage release optionalNo
Rated permanent current at AC-21, 400 V25A
Version as maintenance-/service switchYes
Number of switches1
InterlockableYes
Colour control elementRed
Version as main switchYes
Rated short-time withstand current lcw0.64kA
Rated operation power at AC-23, 400 V11kW
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Version as safety switchNo
Rated permanent current at AC-23, 400 V25A
Switching power at 400 V13kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

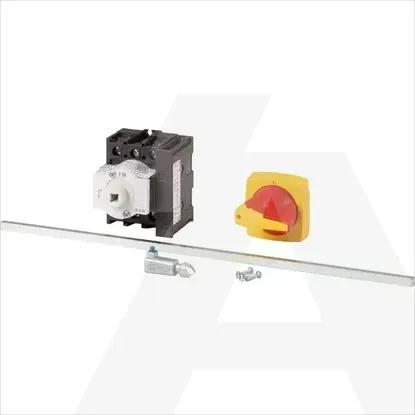

P1-25/M4/K1-PR/HI11

Main Product Image

Details

  • Low-voltage industrial components
  • Switch disconnector
  • 1 KOM
  • EATON

Technical specifications

Number of poles

3

Type of control element

Door coupling rotary drive

Number of auxiliary contacts as normally open contact

1

Number of auxiliary contacts as normally closed contact

1

Rated permanent current Iu

25A

Motor drive optional

Motor drive integrated

Device construction

Built-in device fixed built-in technique

Type of electrical connection of main circuit

Screw connection

Number of auxiliary contacts as change-over contact

0

Rated operation power at AC-3, 400 V

7.5kW

Degree of protection (NEMA)

Other

Degree of protection (IP), front side

IP65

Suitable for floor mounting

Suitable for intermediate mounting

Suitable for distribution board installation

Conditioned rated short-circuit current Iq

80kA

Rated operating voltage

690 .. 690V

Max. rated operation voltage Ue AC

690V

Version as emergency stop installation

Version as reversing switch

Voltage release optional

Rated permanent current at AC-21, 400 V

25A

Version as maintenance-/service switch

Number of switches

1

Interlockable

Colour control element

Red

Version as main switch

Rated short-time withstand current lcw

0.64kA

Rated operation power at AC-23, 400 V

11kW

Suitable for front mounting centre

Suitable for front mounting 4-hole

Version as safety switch

Rated permanent current at AC-23, 400 V

25A

Switching power at 400 V

13kW
