Details
- •Low-voltage industrial components

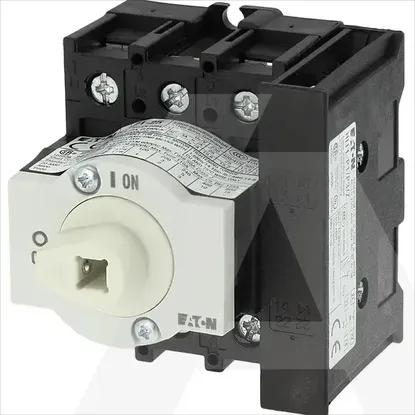

- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq80kA
Number of auxiliary contacts as normally closed contact1
Rated operation power at AC-3, 400 V7.5kW
Number of auxiliary contacts as normally open contact1
Number of poles3
Degree of protection (IP), front sideIP65
Rated permanent current Iu25A
Suitable for front mounting 4-holeNo
Number of switches1
Suitable for intermediate mountingYes
Motor drive integratedNo
Type of control elementDoor coupling rotary drive
Rated short-time withstand current lcw0.64kA
Motor drive optionalNo
Version as main switchYes
Suitable for distribution board installationNo
Rated permanent current at AC-21, 400 V25A
Version as safety switchNo
Voltage release optionalNo
Version as maintenance-/service switchYes
Suitable for floor mountingYes
Device constructionBuilt-in device fixed built-in technique
Max. rated operation voltage Ue AC690V
Version as reversing switchNo
InterlockableYes
Suitable for front mounting centreNo
Colour control elementRed
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-23, 400 V11kW
Version as emergency stop installationYes
Switching power at 400 V13kW
Rated permanent current at AC-23, 400 V25A
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
P1-25/M4/SVB/HI11
