Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Rated operation power at AC-3, 400 V7.5kW
Number of auxiliary contacts as normally open contact1
Degree of protection (IP), front sideIP65
Conditioned rated short-circuit current Iq80kA
Number of auxiliary contacts as normally closed contact1
Rated operating voltage690 - 690V
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Number of switches1
InterlockableYes
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V11kW
Version as main switchYes
Colour control elementBlack
Rated short-time withstand current lcw0.64kA
Version as safety switchNo
Type of control elementDoor coupling rotary drive
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for intermediate mountingYes
Suitable for distribution board installationNo
Motor drive optionalNo
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Switching power at 400 V13kW
Rated permanent current at AC-23, 400 V25A
Version as reversing switchNo
Rated permanent current at AC-21, 400 V25A
Degree of protection (NEMA)Other
Rated permanent current Iu25A
Number of poles3
Max. rated operation voltage Ue AC690V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

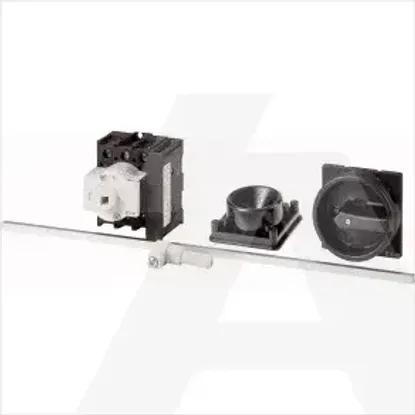

P1-25/M4/SVB-SW/HI11
