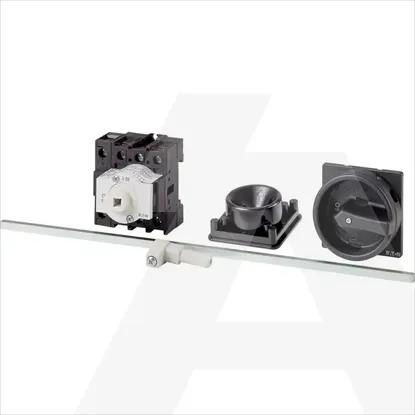

Main Product Image

P1-25/M4/SVB-SW/N

Code: 1641068

ManufacturerEaton
Catalog number172878
TypeP1-25/M4/SVB-SW/N
CategorySwitch disconnector
EAN code4015081694570

Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Depth340mm
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V7.5kW
Number of auxiliary contacts as normally closed contact0
Width72mm
Height70mm
Conditioned rated short-circuit current Iq50kA
Rated operating voltage690 - 690V
Degree of protection (IP), front sideIP65
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
InterlockableYes
Number of switches1
Version as emergency stop installationNo
Type of control elementDoor coupling rotary drive
Version as main switchYes
Rated operation power at AC-23, 400 V13kW
Version as maintenance-/service switchYes
Version as safety switchNo
Suitable for front mounting centreNo
Colour control elementBlack
Suitable for front mounting 4-holeNo
Device constructionBuilt-in device fixed built-in technique
Suitable for floor mountingYes
Suitable for intermediate mountingYes
Rated short-time withstand current lcw0.64kA
Rated permanent current at AC-21, 400 V25A
Motor drive optionalNo
Voltage release optionalNo
Suitable for distribution board installationNo
Version as reversing switchNo
Rated permanent current at AC-23, 400 V25A
Degree of protection (NEMA)12
With pre-assembled cablingNo
Switching power at 400 V13kW
Rated permanent current Iu25A
Number of poles4
Max. rated operation voltage Ue AC690V
