Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Rated permanent current Iu25A
Number of auxiliary contacts as normally open contact1
Rated operation power at AC-3, 400 V7.5kW
Number of auxiliary contacts as normally closed contact1
Number of poles4
Number of switches1
Conditioned rated short-circuit current Iq80kA
Number of auxiliary contacts as change-over contact0
Rated operating voltage690 - 690V
InterlockableYes
Degree of protection (IP), front sideIP65
Type of electrical connection of main circuitScrew connection
Motor drive integratedNo
Colour control elementBlack
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Type of control elementDoor coupling rotary drive
Version as safety switchNo
Rated short-time withstand current lcw0.64kA
Version as main switchYes
Rated operation power at AC-23, 400 V11kW
Voltage release optionalNo
Suitable for intermediate mountingYes
Motor drive optionalNo
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Device constructionBuilt-in device fixed built-in technique
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-21, 400 V25A
Suitable for floor mountingYes
Suitable for distribution board installationNo
Degree of protection (NEMA)Other
Rated permanent current at AC-23, 400 V25A
Switching power at 400 V13kW
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

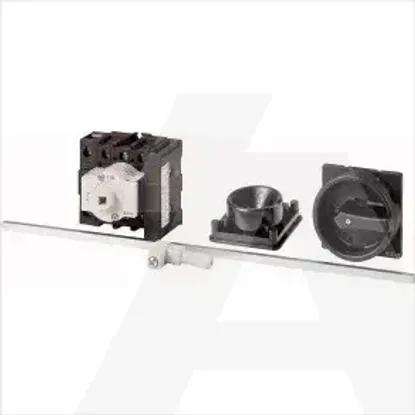

P1-25/M4/SVB-SW/N/HI11
