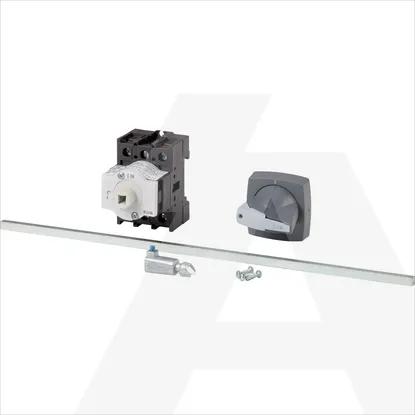

P1-32/M4/K1-PG
Code: 1641070
ManufacturerEaton
Catalog number172874
TypeP1-32/M4/K1-PG
CategorySwitch disconnector
EAN code4015081694532
Details
- •Main switch, 3-pole, 32A, with metal shaft 40
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •Minimum order quantity: 1 pcs
- •EATON
Technical specifications
Height70mm
Rated operation power at AC-3, 400 V13kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Depth340mm
Width57mm
Degree of protection (IP), front sideIP65
Number of switches1
Version as emergency stop installationNo
InterlockableYes
Conditioned rated short-circuit current Iq80kA
Type of control elementShort thumb-grip
Number of auxiliary contacts as change-over contact0
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Rated operating voltage690 - 690V
Version as main switchYes
Version as maintenance-/service switchNo
Version as safety switchNo
Suitable for front mounting 4-holeNo
Motor drive optionalNo
Colour control elementGrey
Rated short-time withstand current lcw0.64kA
Suitable for distribution board installationNo
Rated operation power at AC-23, 400 V15kW
Suitable for intermediate mountingYes
Suitable for floor mountingYes
Suitable for front mounting centreNo
Rated permanent current at AC-21, 400 V32A
Voltage release optionalNo
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V32A
Degree of protection (NEMA)12
Switching power at 400 V15kW
Version as reversing switchNo
Device constructionBuilt-in device fixed built-in technique
Rated permanent current Iu32A
Number of poles3
Max. rated operation voltage Ue AC690V
