Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Number of auxiliary contacts as normally open contact1
Rated permanent current Iu32A
Number of auxiliary contacts as normally closed contact1
Rated operating voltage690 - 690V
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq80kA
Rated operation power at AC-3, 400 V13kW
Degree of protection (IP), front sideIP65
Type of electrical connection of main circuitScrew connection
Version as safety switchNo
Version as maintenance-/service switchNo
Number of switches1
Version as emergency stop installationNo
Motor drive integratedNo
Type of control elementToggle
Version as main switchYes
InterlockableYes
Suitable for floor mountingYes
Rated short-time withstand current lcw0.64kA
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Rated operation power at AC-23, 400 V15kW
Colour control elementGrey
Number of poles3
Suitable for distribution board installationNo
Rated permanent current at AC-23, 400 V32A
Max. rated operation voltage Ue AC690V
Suitable for intermediate mountingYes
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalNo
Rated permanent current at AC-21, 400 V32A
Version as reversing switchNo
Voltage release optionalNo
Switching power at 400 V15kW
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

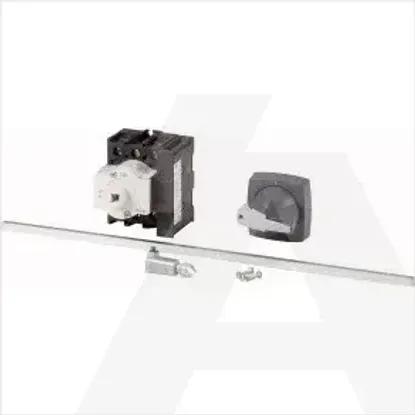

P1-32/M4/K1-PG/HI11
