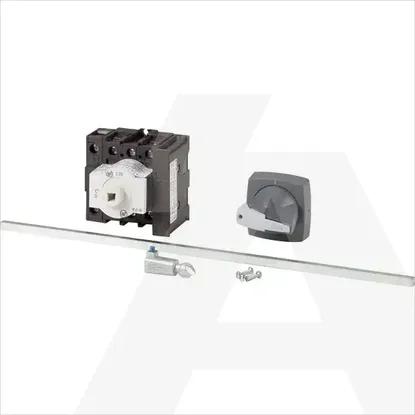

P1-32/M4/K1-PG/N/HI11
Code: 1641073
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Number of poles4
Type of control elementToggle
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact1
Rated permanent current Iu32A
Motor drive optionalNo
Motor drive integratedNo
Device constructionBuilt-in device fixed built-in technique
Type of electrical connection of main circuitScrew connection
Number of auxiliary contacts as change-over contact0
Rated operation power at AC-3, 400 V13kW
Degree of protection (NEMA)Other
Degree of protection (IP), front sideIP65
Suitable for floor mountingYes
Suitable for intermediate mountingYes
Suitable for distribution board installationNo
Max. rated operation voltage Ue AC690V
Conditioned rated short-circuit current Iq80kA
Rated operating voltage690 - 690V
Version as emergency stop installationNo
InterlockableYes
Version as reversing switchNo
Voltage release optionalNo
Rated permanent current at AC-21, 400 V32A
Version as maintenance-/service switchNo
Number of switches1
Colour control elementGrey
Version as main switchYes
Rated short-time withstand current lcw0.64kA
Rated operation power at AC-23, 400 V15kW
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Version as safety switchNo
Rated permanent current at AC-23, 400 V32A
Switching power at 400 V15kW
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
P1-32/M4/K1-PG/N/HI11
Details
- Low-voltage industrial components
- Switch disconnector
- 1 KOM
- EATON
DetailsTechnical specifications
Technical specifications
Number of poles
4
Type of control element
Toggle
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated permanent current Iu
32A
Motor drive optional
Motor drive integrated
Device construction
Built-in device fixed built-in technique
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as change-over contact
0
Rated operation power at AC-3, 400 V
13kW
Degree of protection (NEMA)
Other
Degree of protection (IP), front side
IP65
Suitable for floor mounting
Suitable for intermediate mounting
Suitable for distribution board installation
Max. rated operation voltage Ue AC
690V
Conditioned rated short-circuit current Iq
80kA
Rated operating voltage
690 .. 690V
Version as emergency stop installation
Interlockable
Version as reversing switch
Voltage release optional
Rated permanent current at AC-21, 400 V
32A
Version as maintenance-/service switch
Number of switches
1
Colour control element
Grey
Version as main switch
Rated short-time withstand current lcw
0.64kA
Rated operation power at AC-23, 400 V
15kW
Suitable for front mounting centre
Suitable for front mounting 4-hole
Version as safety switch
Rated permanent current at AC-23, 400 V
32A
Switching power at 400 V
15kW
