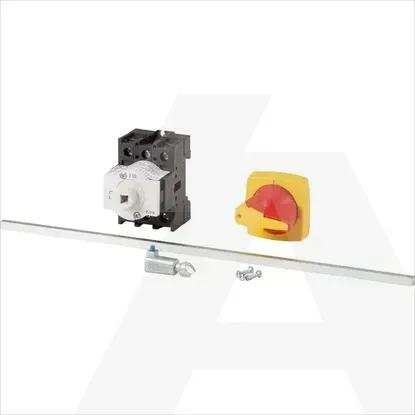

P1-32/M4/K1-PR
Code: 1641074
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as safety switchNo
Version as main switchYes
Rated operation power at AC-3, 400 V13kW
Number of auxiliary contacts as normally open contact0
Rated operating voltage690 - 690V
Number of switches1
Number of poles3
Rated permanent current at AC-23, 400 V32A
Suitable for front mounting centreNo
Switching power at 400 V15kW
Type of control elementShort thumb-grip
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Device constructionBuilt-in device fixed built-in technique
Type of electrical connection of main circuitScrew connection
InterlockableYes
Rated operation power at AC-23, 400 V15kW
Rated short-time withstand current lcw0.64kA
Degree of protection (NEMA)12
Version as reversing switchNo
Rated permanent current at AC-21, 400 V32A
Width57mm
Number of auxiliary contacts as normally closed contact0
Motor drive integratedNo
Version as emergency stop installationYes
Rated permanent current Iu32A
Conditioned rated short-circuit current Iq80kA
Suitable for intermediate mountingYes
Voltage release optionalNo
With pre-assembled cablingNo
Number of auxiliary contacts as change-over contact0
Version as maintenance-/service switchNo
Motor drive optionalNo
Colour control elementRed
Degree of protection (IP), front sideIP65
Height70mm
Max. rated operation voltage Ue AC690V
Suitable for distribution board installationNo
Depth340mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
