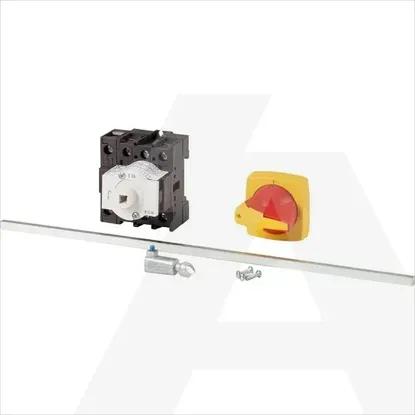

P1-32/M4/K1-PR/N
Code: 1641076
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as main switchYes
Version as maintenance-/service switchNo
Version as emergency stop installationYes
Version as reversing switchNo
Version as safety switchNo
Number of switches1
Rated operation power at AC-23, 400 V15kW
Rated permanent current Iu32A
Rated permanent current at AC-21, 400 V32A
Rated short-time withstand current lcw0.64kA
Max. rated operation voltage Ue AC690V
Voltage release optionalNo
Number of auxiliary contacts as normally open contact0
Number of poles4
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq80kA
Motor drive integratedNo
Type of control elementShort thumb-grip
Type of electrical connection of main circuitScrew connection
Motor drive optionalNo
Switching power at 400 V15kW
InterlockableYes
Rated operation power at AC-3, 400 V13kW
Degree of protection (NEMA)12
Suitable for floor mountingYes
Rated permanent current at AC-23, 400 V32A
Number of auxiliary contacts as normally closed contact0
Suitable for front mounting centreNo
Rated operating voltage690 - 690V
Suitable for distribution board installationNo
Suitable for front mounting 4-holeNo
Width71mm
Degree of protection (IP), front sideIP65
Colour control elementRed
With pre-assembled cablingNo
Suitable for intermediate mountingYes
Height70mm
Device constructionBuilt-in device fixed built-in technique
Depth340mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
