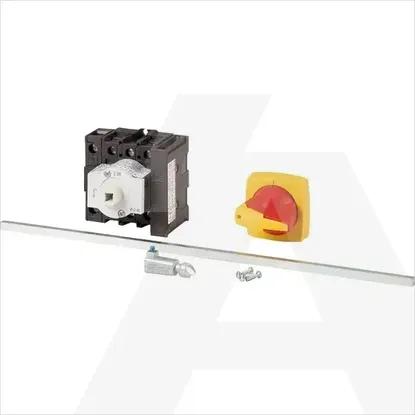

Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Rated permanent current Iu32A
Rated operating voltage690 - 690V
Suitable for front mounting 4-holeNo
Conditioned rated short-circuit current Iq80kA
Degree of protection (IP), front sideIP65
Rated operation power at AC-23, 400 V15kW
Number of switches1
Rated operation power at AC-3, 400 V13kW
Number of auxiliary contacts as normally closed contact1
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Version as safety switchNo
Type of control elementToggle
Number of auxiliary contacts as normally open contact1
Suitable for floor mountingYes
Colour control elementRed
InterlockableYes
Version as main switchYes
Rated short-time withstand current lcw0.64kA
Version as maintenance-/service switchNo
Number of poles4
Number of auxiliary contacts as change-over contact0
Version as emergency stop installationNo
Suitable for front mounting centreNo
Rated permanent current at AC-23, 400 V32A
Device constructionBuilt-in device fixed built-in technique
Max. rated operation voltage Ue AC690V
Version as reversing switchNo
Voltage release optionalNo
Degree of protection (NEMA)Other
Suitable for intermediate mountingYes
Suitable for distribution board installationNo
Switching power at 400 V15kW
Motor drive optionalNo
Rated permanent current at AC-21, 400 V32A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
P1-32/M4/K1-PR/N/HI11
