Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
InterlockableYes
Conditioned rated short-circuit current Iq80kA
Rated operating voltage690 - 690V
Motor drive integratedNo
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu32A
Version as emergency stop installationYes
Depth340mm
Rated operation power at AC-3, 400 V13kW
Number of auxiliary contacts as normally open contact0
Type of electrical connection of main circuitScrew connection
Number of poles3
Number of switches1
Width72mm
Height70mm
Degree of protection (IP), front sideIP65
Type of control elementDoor coupling rotary drive
Version as reversing switchNo
Suitable for front mounting centreNo
Device constructionBuilt-in device fixed built-in technique
Suitable for intermediate mountingYes
Suitable for front mounting 4-holeNo
With pre-assembled cablingNo
Rated permanent current at AC-21, 400 V32A
Motor drive optionalNo
Suitable for floor mountingYes
Suitable for distribution board installationNo
Version as main switchYes
Switching power at 400 V15kW
Colour control elementRed
Degree of protection (NEMA)12
Rated permanent current at AC-23, 400 V32A
Voltage release optionalNo
Version as maintenance-/service switchYes
Max. rated operation voltage Ue AC690V
Rated operation power at AC-23, 400 V15kW
Version as safety switchNo
Rated short-time withstand current lcw0.64kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

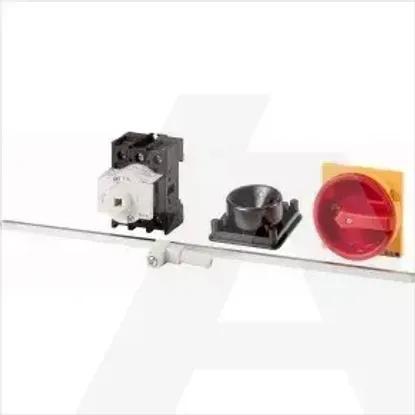

P1-32/M4/SVB
