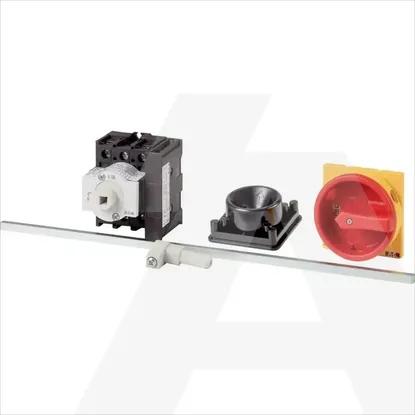

P1-32/M4/SVB/HI11
Code: 1641079
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Number of switches1
Version as reversing switchNo
Version as safety switchNo
Rated permanent current Iu32A
Version as emergency stop installationYes
Version as main switchYes
Rated operating voltage690 - 690V
Rated operation power at AC-3, 400 V13kW
Version as maintenance-/service switchYes
Switching power at 400 V15kW
Conditioned rated short-circuit current Iq80kA
Rated short-time withstand current lcw0.64kA
Rated operation power at AC-23, 400 V15kW
Max. rated operation voltage Ue AC690V
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally closed contact1
Rated permanent current at AC-23, 400 V32A
Motor drive optionalNo
Rated permanent current at AC-21, 400 V32A
Number of poles3
Number of auxiliary contacts as normally open contact1
Motor drive integratedNo
Device constructionBuilt-in device fixed built-in technique
Suitable for distribution board installationNo
Colour control elementRed
InterlockableYes
Suitable for intermediate mountingYes
Type of control elementDoor coupling rotary drive
Degree of protection (IP), front sideIP65
Degree of protection (NEMA)12
Suitable for front mounting centreNo
Suitable for floor mountingYes
Width72mm
Depth340mm
Voltage release optionalNo
Height70mm
Type of electrical connection of main circuitScrew connection
With pre-assembled cablingNo
Suitable for front mounting 4-holeNo
