Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •EATON
Technical specifications
Width72mm
Height70mm
Depth340mm
Rated operation power at AC-3, 400 V13kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu32A
Number of poles3
Rated operating voltage690 - 690V
Conditioned rated short-circuit current Iq80kA
Material housingPlastic
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as change-over contact0
Number of switches1
InterlockableYes
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationNo
Type of control elementDoor coupling rotary drive
Version as main switchYes
Version as safety switchNo
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V15kW
Rated short-time withstand current lcw0.64kA
Colour control elementBlack
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Suitable for intermediate mountingYes
Max. rated operation voltage Ue AC690V
Motor drive optionalNo
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-21, 400 V32A
Switching power at 400 V15kW
Version as reversing switchNo
Rated permanent current at AC-23, 400 V32A
Degree of protection (NEMA)12
With pre-assembled cablingNo
Suitable for floor mountingNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

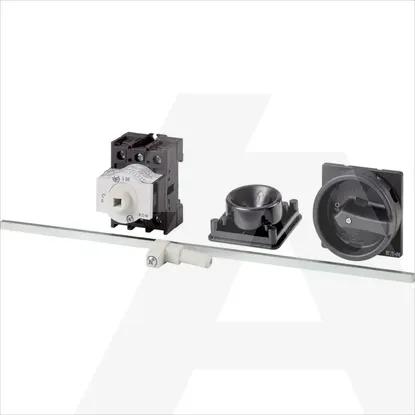

P1-32/M4/SVB-SW
