Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •EATON
Technical specifications
Version as maintenance-/service switchYes
Version as emergency stop installationYes
Version as reversing switchNo
Version as safety switchNo
Number of switches1
Version as main switchYes
Rated operating voltage690 - 690V
Rated permanent current at AC-23, 400 V100A
Rated operation power at AC-3, 400 V37kW
Rated short-time withstand current lcw2kA
Switching power at 400 V55kW
Conditioned rated short-circuit current Iq80kA
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-23, 400 V55kW
Number of auxiliary contacts as normally open contact0
Rated permanent current at AC-21, 400 V100A
Motor drive optionalNo
Motor drive integratedNo
Voltage release optionalNo
Number of auxiliary contacts as change-over contact0
Suitable for front mounting 4-holeNo
Device constructionBuilt-in device fixed built-in technique
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Suitable for intermediate mountingYes
Colour control elementRed
Type of control elementShort thumb-grip
InterlockableYes
Type of electrical connection of main circuitScrew connection
Height84mm
Width100mm
Degree of protection (IP), front sideIP65
With pre-assembled cablingNo
Degree of protection (NEMA)12
Depth340mm
Suitable for floor mountingNo
Material housingPlastic
Rated permanent current Iu100A
Number of poles3
Max. rated operation voltage Ue AC690V
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

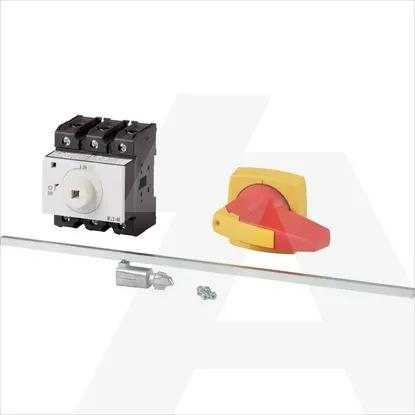

P3-100/M4/K2-PR
