Details

  • •Low-voltage industrial components
  • •Switch disconnector (low voltage)
  • •1 KOM
  • •EATON

Technical specifications

Height84mm
Width100mm
InterlockableYes
Number of poles4
Number of auxiliary contacts as normally closed contact0
Depth340mm
Conditioned rated short-circuit current Iq80kA
Number of switches1
Degree of protection (IP), front sideIP65
Rated operating voltage690 - 690V
Rated permanent current Iu100A
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact0
Rated operation power at AC-3, 400 V37kW
Suitable for front mounting 4-holeNo
Suitable for floor mountingYes
Motor drive integratedNo
Version as main switchYes
Version as safety switchNo
Rated short-time withstand current lcw2kA
Motor drive optionalNo
Colour control elementRed
Suitable for intermediate mountingYes
Rated operation power at AC-23, 400 V55kW
Voltage release optionalNo
Max. rated operation voltage Ue AC690V
Type of electrical connection of main circuitScrew connection
Type of control elementShort thumb-grip
Suitable for distribution board installationNo
Version as emergency stop installationYes
Version as maintenance-/service switchYes
Suitable for front mounting centreNo
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-21, 400 V100A
Switching power at 400 V55kW
With pre-assembled cablingNo
Rated permanent current at AC-23, 400 V100A
Degree of protection (NEMA)12
Version as reversing switchNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

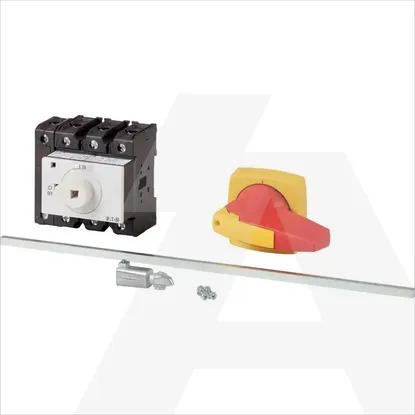

P3-100/M4/K2-PR/N
