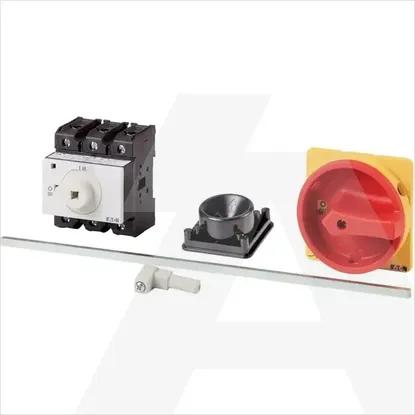

P3-100/M4/SVB
Code: 1641093
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as maintenance-/service switchYes
Max. rated operation voltage Ue AC690V
Rated operating voltage690 - 690V
Version as emergency stop installationYes
Rated permanent current at AC-23, 400 V100A
Number of switches1
Rated short-time withstand current lcw2kA
Version as safety switchNo
Rated permanent current Iu100A
Conditioned rated short-circuit current Iq80kA
Rated permanent current at AC-21, 400 V100A
Rated operation power at AC-3, 400 V37kW
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as change-over contact0
Number of poles3
Rated operation power at AC-23, 400 V55kW
Switching power at 400 V55kW
Number of auxiliary contacts as normally closed contact0
Version as main switchYes
Version as reversing switchNo
Motor drive optionalNo
Motor drive integratedNo
Device constructionBuilt-in device fixed built-in technique
Suitable for floor mountingYes
Voltage release optionalNo
Suitable for distribution board installationNo
Suitable for intermediate mountingYes
InterlockableYes
Suitable for front mounting centreNo
Suitable for front mounting 4-holeNo
Colour control elementRed
Type of control elementDoor coupling rotary drive
Type of electrical connection of main circuitScrew connection
Degree of protection (IP), front sideIP65
With pre-assembled cablingNo
Degree of protection (NEMA)12
Height88mm
Width95mm
Depth340mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
