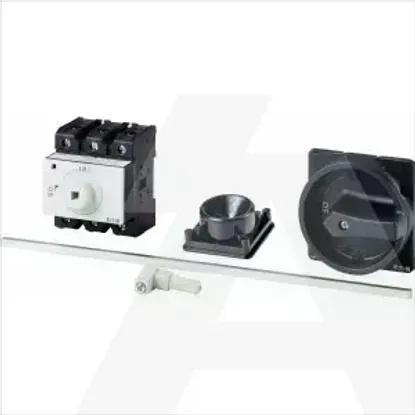

P3-100/M4/SVB-SW
Code: 1641095
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as maintenance-/service switchYes
Rated permanent current Iu100A
Rated permanent current at AC-23, 400 V100A
Number of switches1
Version as main switchYes
Version as safety switchNo
Rated operating voltage690 - 690V
Version as emergency stop installationNo
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq80kA
Rated short-time withstand current lcw2kA
Version as reversing switchNo
Number of poles3
Max. rated operation voltage Ue AC690V
Switching power at 400 V55kW
Number of auxiliary contacts as normally open contact0
Motor drive integratedNo
Voltage release optionalNo
Motor drive optionalNo
Suitable for floor mountingYes
Rated operation power at AC-23, 400 V55kW
Number of auxiliary contacts as change-over contact0
Rated permanent current at AC-21, 400 V100A
Device constructionBuilt-in device fixed built-in technique
Rated operation power at AC-3, 400 V37kW
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Colour control elementBlack
Suitable for intermediate mountingYes
Type of control elementDoor coupling rotary drive
InterlockableYes
Type of electrical connection of main circuitScrew connection
Degree of protection (IP), front sideIP65
Width95mm
With pre-assembled cablingNo
Depth340mm
Degree of protection (NEMA)12
Height88mm
