Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Rated permanent current Iu63A
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP65
Number of auxiliary contacts as normally closed contact1
Conditioned rated short-circuit current Iq4kA
Number of poles3
Rated operating voltage690 - 690V
Rated operation power at AC-3, 400 V30kW
Number of auxiliary contacts as normally open contact1
InterlockableYes
Version as main switchYes
Version as safety switchNo
Motor drive integratedNo
Type of electrical connection of main circuitScrew connection
Number of switches1
Version as emergency stop installationNo
Type of control elementToggle
Suitable for front mounting 4-holeNo
Rated operation power at AC-23, 400 V30kW
Version as maintenance-/service switchYes
Suitable for floor mountingYes
Rated short-time withstand current lcw1.26kA
Colour control elementGrey
Voltage release optionalNo
Suitable for front mounting centreNo
Motor drive optionalNo
Suitable for distribution board installationNo
Suitable for intermediate mountingYes
Device constructionBuilt-in device fixed built-in technique
Max. rated operation voltage Ue AC690V
Rated permanent current at AC-23, 400 V63A
Switching power at 400 V30kW
Degree of protection (NEMA)Other
Version as reversing switchNo
Rated permanent current at AC-21, 400 V63A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

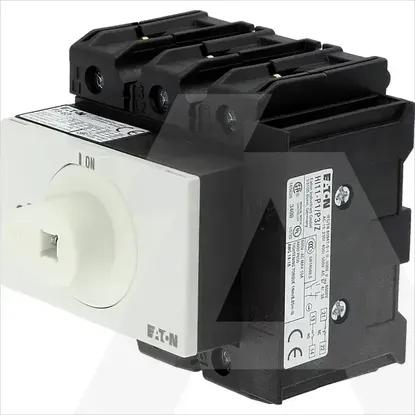

P3-63/M4/K2-PG/HI11
