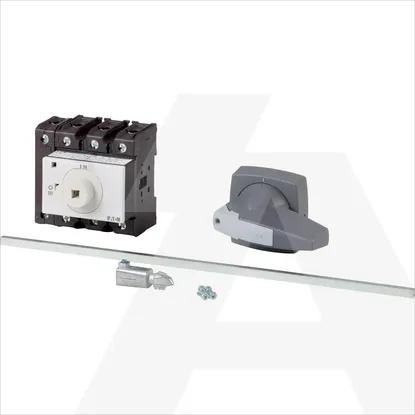

P3-63/M4/K2-PG/N
Code: 1641099
Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Version as reversing switchNo
Version as emergency stop installationNo
Version as maintenance-/service switchYes
Version as safety switchNo
Rated permanent current at AC-21, 400 V63A
Rated permanent current at AC-23, 400 V63A
Number of switches1
Rated permanent current Iu63A
Version as main switchYes
Max. rated operation voltage Ue AC690V
Rated operating voltage690 - 690V
Number of auxiliary contacts as normally closed contact0
Switching power at 400 V30kW
Motor drive integratedNo
Number of poles4
Rated operation power at AC-3, 400 V30kW
Conditioned rated short-circuit current Iq100kA
Number of auxiliary contacts as normally open contact0
Suitable for floor mountingYes
Suitable for distribution board installationNo
Colour control elementGrey
Rated operation power at AC-23, 400 V30kW
Number of auxiliary contacts as change-over contact0
InterlockableYes
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Motor drive optionalNo
Rated short-time withstand current lcw1.26kA
Suitable for intermediate mountingYes
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Type of control elementShort thumb-grip
Degree of protection (NEMA)12
Degree of protection (IP), front sideIP65
With pre-assembled cablingNo
Type of electrical connection of main circuitScrew connection
Depth340mm
Width100mm
Height84mm
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
