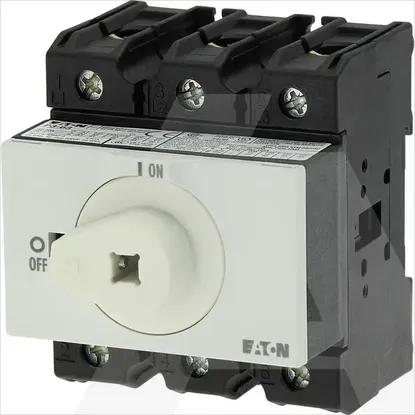

Details
- •Low-voltage industrial components
- •Switch disconnector (low voltage)
- •1 KOM
- •EATON
Technical specifications
Depth340mm
Width95mm
Number of auxiliary contacts as normally open contact0
Height88mm
Number of poles3
Rated permanent current Iu63A
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V30kW
Version as main switchYes
Rated operating voltage690 - 690V
Type of control elementDoor coupling rotary drive
Motor drive integratedNo
Degree of protection (IP), front sideIP65
Colour control elementRed
Number of switches1
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V30kW
Type of electrical connection of main circuitScrew connection
Version as emergency stop installationYes
Conditioned rated short-circuit current Iq100kA
Version as safety switchNo
InterlockableYes
Number of auxiliary contacts as change-over contact0
Rated short-time withstand current lcw1.26kA
Suitable for floor mountingYes
Device constructionBuilt-in device fixed built-in technique
Suitable for front mounting centreNo
Voltage release optionalNo
Suitable for distribution board installationNo
Version as reversing switchNo
Max. rated operation voltage Ue AC690V
Suitable for intermediate mountingYes
With pre-assembled cablingNo
Rated permanent current at AC-21, 400 V63A
Degree of protection (NEMA)12
Switching power at 400 V30kW
Motor drive optionalNo
Rated permanent current at AC-23, 400 V63A
Suitable for front mounting 4-holeNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
P3-63/M4/SVB
