Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •EATON
Technical specifications
Rated permanent current Iu63A
Rated operation power at AC-3, 400 V30kW
Number of auxiliary contacts as normally open contact1
Number of auxiliary contacts as normally closed contact1
Conditioned rated short-circuit current Iq4kA
Degree of protection (IP), front sideIP65
Number of poles3
Rated operating voltage690 - 690V
Number of auxiliary contacts as change-over contact0
Number of switches1
Version as emergency stop installationYes
Type of electrical connection of main circuitScrew connection
Suitable for distribution board installationNo
Version as safety switchNo
Motor drive integratedNo
Type of control elementDoor coupling rotary drive
Version as maintenance-/service switchYes
Suitable for floor mountingYes
Colour control elementRed
Rated operation power at AC-23, 400 V30kW
Max. rated operation voltage Ue AC690V
Rated short-time withstand current lcw1.26kA
Version as main switchYes
Suitable for intermediate mountingYes
InterlockableYes
Suitable for front mounting 4-holeNo
Suitable for front mounting centreNo
Voltage release optionalNo
Motor drive optionalNo
Switching power at 400 V30kW
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-23, 400 V63A
Version as reversing switchNo
Rated permanent current at AC-21, 400 V63A
Degree of protection (NEMA)Other
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

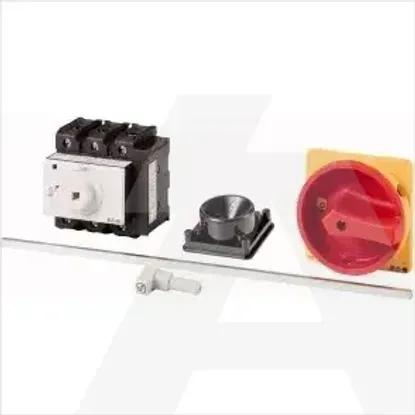

P3-63/M4/SVB/HI11
