Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •EATON
Technical specifications
Nominal voltage AC0V
Max. continuous voltage AC0V
Number of conductors (without earthing)2
Max. conductor cross section flexible (fine-strand)0mm²
Max. conductor cross section solid (solid, stranded)0mm²
Voltage protection level N-PE0kV
Signalling at the deviceOptic
Nominal voltage DC600V
Mounting methodDIN rail (top hat rail) 35 mm
Max. continuous voltage DC720V
System configuration DCNo
Integrated backup fuseNo
Category type 2Yes
Construction size3 modular spacing
With remote signalling contactNo
Nominal discharge surge current (8/20)15kA
Degree of protection (IP)IP20
Voltage protection level2.6kV
Max. PV-voltage720V
Voltage protection level L-N0kV
System configuration ITYes
System configuration otherNo
System configuration TN-SNo
System configuration TNNo
Integrated short-circuit protectionNo
Leakage-current freeNo
Integrated short-circuit protection selective to fuse gG0A
System configuration TTNo
System configuration TN-CNo
System configuration TN-C-SNo
Max. overcurrent protection device, parallel connection (fuse)0A
Short-circuit breaking capacity (Isccr)0kA
Max. overcurrent protection device, series connection (fuse)0A
Max. discharge surge current (8/20)40kA
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

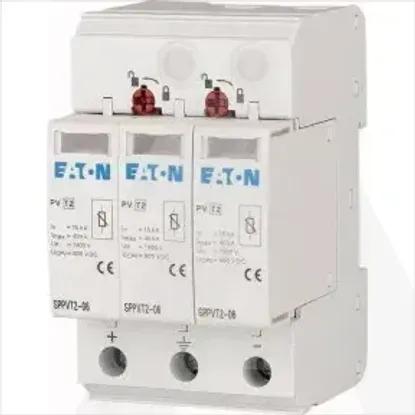

SPPVT12-06-2+PE
