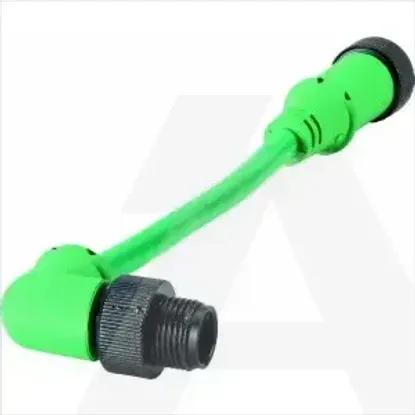

SWD4-M1LR5-RS
Code: 1641355
Details
- •Cables
- •Data and communication cable
- •1 KOM
- •EATON
Technical specifications
Cable typeOther
Number of cores5
Core identificationColour
Core identification according to HD 308 S2No
Protective sheathOther
Conductor surfaceBare
Conductor materialOther
Diameter conductor1.5mm
Conductor categoryClass 2 = stranded
Material core insulationOther
Number of stranding elements5
Stranding elementPairs
Nominal cross section conductor0.5mm²
Number of sheath layers0
Material outer sheathPolyvinyl chloride (PVC)
Specification material outer sheathPolypropylene (PP)
Specification core insulationOther
Suitable for underground installationNo
DuplexNo
Colour outer sheathGreen
Screen over strandingNone
Screen over stranding elementFoil
Longitudinal water blocking cableYes
AWG size20
StrandingBundle
Approved type of underground installationOther
Armouring/reinforcementNone
Radial water blocking cableYes
Permitted cable outer temperature during assembling/handling-40 - 80°C
Permitted cable outer temperature after assembling without vibration-40 - 80°C
CategoryOther
Suitable as telephone cableNo
Certified for shipboard applicationNo
NVP value66.5%
Suitable as signalling cableYes
Suitable as computer data cableNo
Suitable for use as security alarm cableNo
Drain wireNo
With rip cordNo
Cable width approx.5.6mm
Cable height approx.16.3mm
Characteristic impedance100Ohm
Nominal voltage U24V
With rodent protectionNo
Compatible with Grade2TV according to XP-C 90-483No
Compatible with Grade3TV according to XP-C 90-483No
Material reinforcementOther
Cable geometryRound
Flame retardant according to IEC 60332-1-2No
Flame retardant according to IEC 60332-3-21 (Cat A F/R)No
Flame retardant according to IEC 60332-3-23 (Cat B)No
Flame retardant according to IEC 60332-3-22 (Cat A)No
Flame retardant according to IEC 60332-3-25 (Cat D)No
Low smoke (according to IEC 61034-2)No
Flame retardant according to IEC 60332-3-24 (Cat C)No
Halogen free (according to IEC 60754-2)No
Halogen free according to IEC 60754-1No
Reaction-to-fire class according to EN 13501-6None
Smoke development class according to EN 13501-6None
Euro class acidity according to EN 13501-6None
Euro class flaming droplets/particles according to EN 13501-6None
Halogen free according to IEC 60754-3No
Oil resistant (according to EN 60811-404)Yes
Circuit integrity according to IEC 60331-23No
Min. permitted bending radius, moving application with forced guidance46mm
Outer diameter approx.5.6mm
Min. permitted bending radius, stationary application/permanent installation34mm
Min. permitted bending radius, moving application/free movement46mm
