Details
- •Sub-floor systems

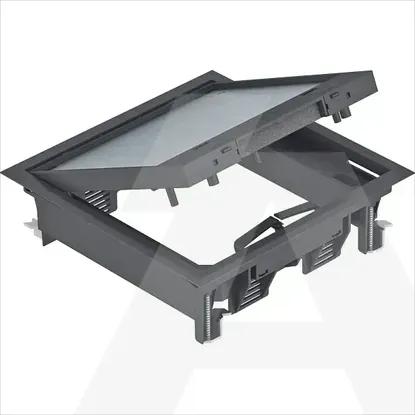

- •Device installation insert for subfloor installation
- •1 KOM
- •OBO
Technical specifications
Number of CEE socket outlets 16 A / 400 V / 5P-
Outer diameter-mm
Number of socket outlets with protective contact (SCHUKO)-
ColourBlack
Number of CEE socket outlets 32 A / 400 V / 5P-
Length built-in dimension201mm
MaterialPolyamide (PA)
With opening carpetingYes
Width built-in dimension201mm
Width outside dimension-mm
Cover modelSquare
Suitable for concrete installationNo
Number of UK BS1363 sockets-
Depth of flooring recess-mm
Number of inlets-
Suitable for outdoor installationNo
Suitable for wet cleaningNo
Suitable for double floor built-inYes
Length external dimension-mm
Protective frame carpetingYes
Degree of protection (IP)IP20
Material coverPlastic
Number of device cups2
Suitable for indoor installationNo
Suitable for hollow floorYes
Built-in diameter-mm
Suitable for floors in computer roomsNo
Lockable lidNo
Outer width222mm
Cover load2.0kN
With cable outlet in coverYes
Outside width222mm
Suitable for sub-floor ductYes
Min. built-in depth65mm
RAL-number9011
Outer length222mm
Related products
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user
7405146 | GES4-2U10T 9011
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Sub-floor systems
- Device installation insert for subfloor installation
- 1 KOM
- OBO
DetailsTechnical specificationsRelated products
Technical specifications
Number of CEE socket outlets 16 A / 400 V / 5P
-
Outer diameter
-mm
Number of socket outlets with protective contact (SCHUKO)
-
Colour
Black
Number of CEE socket outlets 32 A / 400 V / 5P
-
Length built-in dimension
201mm
Material
Polyamide (PA)
With opening carpeting
Width built-in dimension
201mm
Width outside dimension
-mm
Cover model
Square
Suitable for concrete installation
Number of UK BS1363 sockets
-
Depth of flooring recess
-mm
Number of inlets
-
Suitable for outdoor installation
Suitable for wet cleaning
Suitable for double floor built-in
Length external dimension
-mm
Protective frame carpeting
Degree of protection (IP)
IP20
Material cover
Plastic
Number of device cups
2
Suitable for indoor installation
Suitable for hollow floor
Built-in diameter
-mm
Suitable for floors in computer rooms
Lockable lid
Outer width
222mm
Cover load
2.0kN
With cable outlet in cover
Outside width
222mm
Suitable for sub-floor duct
Min. built-in depth
65mm
RAL-number
9011
Outer length
222mm
