Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •SOCOMEC
Technical specifications
Number of auxiliary contacts as normally open contact0
Number of switches2
Type of electrical connection of main circuitBolt connection
InterlockableYes
Rated operating voltage400 - 690V
Number of poles3
Number of auxiliary contacts as change-over contact0
Conditioned rated short-circuit current Iq50kA
Degree of protection (IP), front sideIP20
Rated permanent current Iu400A
Rated operation power at AC-3, 400 V-kW
Rated operation power at AC-23, 400 V220kW
Type of control elementOther
Rated short-time withstand current lcw10kA
Colour control elementBlack
Version as maintenance-/service switchYes
Version as emergency stop installationNo
Motor drive integratedNo
Suitable for floor mountingYes
Version as safety switchYes
Version as main switchYes
Number of auxiliary contacts as normally closed contact0
Suitable for front mounting 4-holeYes
Suitable for distribution board installationYes
Voltage release optionalNo
Suitable for front mounting centreNo
Motor drive optionalNo
Suitable for intermediate mountingYes
Device constructionBuilt-in device fixed built-in technique
Switching power at 400 V220kW
Rated permanent current at AC-23, 400 V400A
Rated permanent current at AC-21, 400 V400A
Max. rated operation voltage Ue AC1000V
Version as reversing switchYes
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

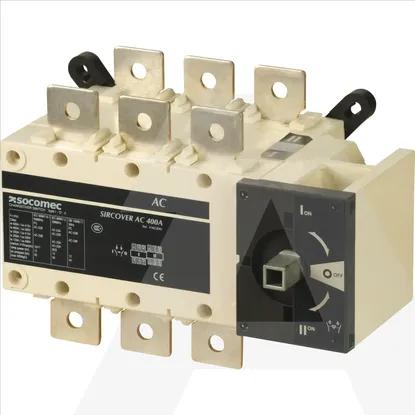

41AC3040 | SIRCOVER 3X400A F
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector
- 1 KOM
- SOCOMEC
DetailsTechnical specifications
Technical specifications
Number of auxiliary contacts as normally open contact
0
Number of switches
2
Type of electrical connection of main circuit
Bolt connection
Interlockable
Rated operating voltage
400 .. 690V
Number of poles
3
Number of auxiliary contacts as change-over contact
0
Conditioned rated short-circuit current Iq
50kA
Degree of protection (IP), front side
IP20
Rated permanent current Iu
400A
Rated operation power at AC-3, 400 V
-kW
Rated operation power at AC-23, 400 V
220kW
Type of control element
Other
Rated short-time withstand current lcw
10kA
Colour control element
Black
Version as maintenance-/service switch
Version as emergency stop installation
Motor drive integrated
Suitable for floor mounting
Version as safety switch
Version as main switch
Number of auxiliary contacts as normally closed contact
0
Suitable for front mounting 4-hole
Suitable for distribution board installation
Voltage release optional
Suitable for front mounting centre
Motor drive optional
Suitable for intermediate mounting
Device construction
Built-in device fixed built-in technique
Switching power at 400 V
220kW
Rated permanent current at AC-23, 400 V
400A
Rated permanent current at AC-21, 400 V
400A
Max. rated operation voltage Ue AC
1000V
Version as reversing switch
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
