Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •SOCOMEC
Technical specifications
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as normally open contact3
Rated operation power at AC-3, 400 V-kW
Number of poles4
Rated permanent current Iu400A
Rated operating voltage400 - 690V
Rated short-time withstand current lcw8kA
Type of electrical connection of main circuitBolt connection
Number of switches2
Version as maintenance-/service switchNo
Version as emergency stop installationNo
Colour control elementBlack
InterlockableYes
Conditioned rated short-circuit current Iq50kA
Version as safety switchNo
Number of auxiliary contacts as change-over contact0
Version as main switchNo
Motor drive integratedYes
Rated operation power at AC-23, 400 V-kW
Degree of protection (IP), front sideIP20
Type of control elementLong turning handle
Version as reversing switchYes
Suitable for front mounting centreNo
Max. rated operation voltage Ue AC1000V
Suitable for distribution board installationYes
Voltage release optionalNo
Rated permanent current at AC-21, 400 V400A
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-23, 400 V400A
Suitable for intermediate mountingYes
Switching power at 400 V-kW
Suitable for front mounting 4-holeYes
Suitable for floor mountingYes
Motor drive optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

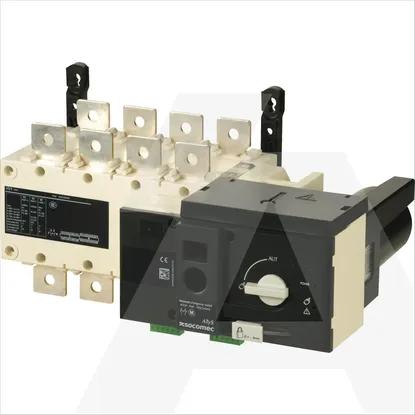

95234040 | ATyS / ATyS r 4X400A F
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector
- 1 KOM
- SOCOMEC
DetailsTechnical specifications
Technical specifications
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
3
Rated operation power at AC-3, 400 V
-kW
Number of poles
4
Rated permanent current Iu
400A
Rated operating voltage
400 .. 690V
Rated short-time withstand current lcw
8kA
Type of electrical connection of main circuit
Bolt connection
Number of switches
2
Version as maintenance-/service switch
Version as emergency stop installation
Colour control element
Black
Interlockable
Conditioned rated short-circuit current Iq
50kA
Version as safety switch
Number of auxiliary contacts as change-over contact
0
Version as main switch
Motor drive integrated
Rated operation power at AC-23, 400 V
-kW
Degree of protection (IP), front side
IP20
Type of control element
Long turning handle
Version as reversing switch
Suitable for front mounting centre
Max. rated operation voltage Ue AC
1000V
Suitable for distribution board installation
Voltage release optional
Rated permanent current at AC-21, 400 V
400A
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-23, 400 V
400A
Suitable for intermediate mounting
Switching power at 400 V
-kW
Suitable for front mounting 4-hole
Suitable for floor mounting
Motor drive optional
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
