Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •SOCOMEC
Technical specifications
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as change-over contact0
Number of auxiliary contacts as normally open contact3
Type of electrical connection of main circuitBolt connection
Rated operating voltage400 - 690V
Conditioned rated short-circuit current Iq100kA
Motor drive integratedYes
Number of switches2
Degree of protection (IP), front sideIP20
Number of poles4
Number of auxiliary contacts as normally closed contact0
Rated permanent current Iu1250A
Version as emergency stop installationNo
InterlockableYes
Type of control elementLong turning handle
Suitable for floor mountingYes
Version as main switchNo
Rated short-time withstand current lcw35kA
Version as maintenance-/service switchNo
Rated operation power at AC-23, 400 V-kW
Voltage release optionalNo
Suitable for intermediate mountingYes
Switching power at 400 V-kW
Rated permanent current at AC-23, 400 V1250A
Device constructionBuilt-in device fixed built-in technique
Suitable for front mounting 4-holeYes
Suitable for front mounting centreNo
Colour control elementBlack
Suitable for distribution board installationYes
Version as safety switchNo
Motor drive optionalNo
Version as reversing switchYes
Max. rated operation voltage Ue AC1000V
Rated permanent current at AC-21, 400 V1250A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

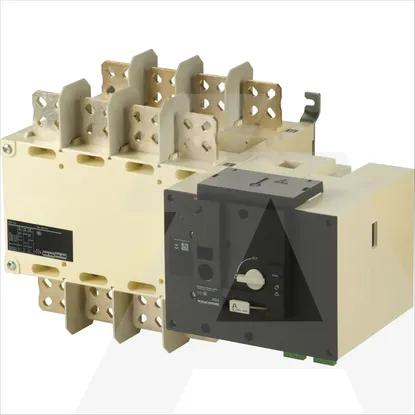

95234120 | ATyS / ATyS r 4X1250 F
