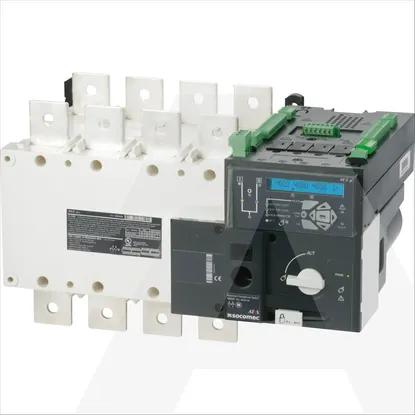

Details
- •Low-voltage control systems
- •Switch disconnector (AC)
- •1 KOM
- •SOCOMEC
Technical specifications
Number of auxiliary contacts as normally closed contact0
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact3
Rated operating voltage400 - 690V
Number of auxiliary contacts as change-over contact0
Type of control elementLong turning handle
Motor drive optionalNo
Rated short-time withstand current lcw35kA
Version as maintenance-/service switchNo
Rated operation power at AC-23, 400 V-kW
Version as main switchNo
Type of electrical connection of main circuitBolt connection
Degree of protection (IP), front sideIP20
Suitable for front mounting centreNo
Suitable for front mounting 4-holeYes
Conditioned rated short-circuit current Iq100kA
Suitable for intermediate mountingYes
InterlockableYes
Version as emergency stop installationNo
Version as safety switchNo
Number of switches2
Suitable for distribution board installationYes
Colour control elementBlack
Suitable for floor mountingYes
Rated permanent current at AC-21, 400 V1250A
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-23, 400 V1250A
Switching power at 400 V-kW
Motor drive integratedYes
Version as reversing switchYes
Rated permanent current Iu1250A
Number of poles4
Max. rated operation voltage Ue AC1000V
