Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Rated permanent current Iu160A
Rated operating voltage1000 - 1000V
Number of poles3
Number of auxiliary contacts as normally closed contact0
Conditioned rated short-circuit current Iq24kA
Number of auxiliary contacts as change-over contact0
Degree of protection (IP), front sideIP20
Motor drive integratedNo
Suitable for distribution board installationNo
Version as safety switchNo
Suitable for front mounting 4-holeNo
Version as emergency stop installationNo
Number of switches-
Suitable for intermediate mountingNo
Version as maintenance-/service switchYes
Rated operation power at AC-23, 400 V75kW
InterlockableNo
Suitable for floor mountingNo
Version as main switchYes
Rated short-time withstand current lcw4kA
Type of electrical connection of main circuitScrew connection
Type of control elementNone
Voltage release optionalNo
Device constructionBuilt-in device fixed built-in technique
Rated permanent current at AC-23, 400 V160A
Max. rated operation voltage Ue AC1000V
Switching power at 400 V75kW
Suitable for front mounting centreNo
Rated permanent current at AC-21, 400 V160A
Version as reversing switchNo
Motor drive optionalNo
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

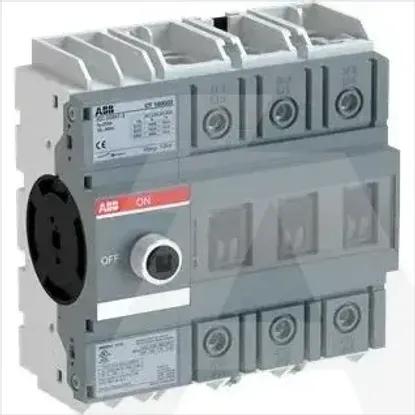

1SCA135134R1001 | OT160G03
Why Register?
- View wholesale prices with discounts
- Real-time stock availability
- Access invoices and dispatch notes
- Order history and frequently ordered items
- Exclusive B2B offers
and much more...
Details
- Low-voltage industrial components
- Switch disconnector
- 1 KOM
- ABB
DetailsTechnical specifications
Technical specifications
Rated operation power at AC-3, 400 V
-kW
Number of auxiliary contacts as normally open contact
0
Rated permanent current Iu
160A
Rated operating voltage
1000 .. 1000V
Number of poles
3
Number of auxiliary contacts as normally closed contact
0
Conditioned rated short-circuit current Iq
24kA
Number of auxiliary contacts as change-over contact
0
Degree of protection (IP), front side
IP20
Motor drive integrated
Suitable for distribution board installation
Version as safety switch
Suitable for front mounting 4-hole
Version as emergency stop installation
Number of switches
-
Suitable for intermediate mounting
Version as maintenance-/service switch
Rated operation power at AC-23, 400 V
75kW
Interlockable
Suitable for floor mounting
Version as main switch
Rated short-time withstand current lcw
4kA
Type of electrical connection of main circuit
Screw connection
Type of control element
None
Voltage release optional
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-23, 400 V
160A
Max. rated operation voltage Ue AC
1000V
Switching power at 400 V
75kW
Suitable for front mounting centre
Rated permanent current at AC-21, 400 V
160A
Version as reversing switch
Motor drive optional
VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
