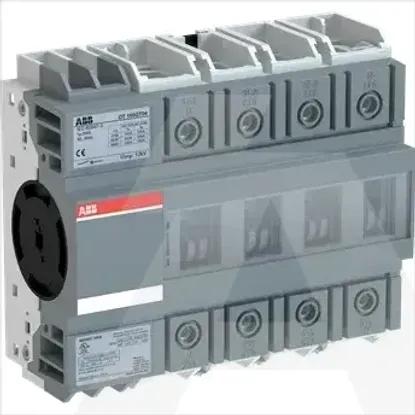

1SCA135137R1001 | OT160GT04
Code: 1661102
ManufacturerABB
Catalog number1SCA135137R1001
TypeOT160GT04
CategorySwitch disconnector
EAN code6417019638386
Details
- •Low-voltage industrial components
- •Switch disconnector
- •1 KOM
- •ABB
Technical specifications
Rated operation power at AC-3, 400 V-kW
Number of auxiliary contacts as normally open contact0
Degree of protection (IP), front sideIP20
Rated operating voltage1000 - 1000V
Conditioned rated short-circuit current Iq24kA
Number of auxiliary contacts as normally closed contact0
Number of auxiliary contacts as change-over contact0
Type of electrical connection of main circuitScrew connection
InterlockableNo
Version as emergency stop installationNo
Version as main switchYes
Motor drive integratedNo
Version as safety switchNo
Type of control elementNone
Number of switches-
Version as maintenance-/service switchYes
Suitable for floor mountingNo
Suitable for front mounting centreNo
Suitable for distribution board installationNo
Rated operation power at AC-23, 400 V75kW
Rated short-time withstand current lcw4kA
Suitable for front mounting 4-holeNo
Motor drive optionalNo
Switching power at 400 V75kW
Rated permanent current at AC-21, 400 V160A
Voltage release optionalNo
Version as reversing switchNo
Device constructionBuilt-in device fixed built-in technique
Suitable for intermediate mountingNo
Rated permanent current at AC-23, 400 V160A
Rated permanent current Iu160A
Number of poles4
Max. rated operation voltage Ue AC1000V
