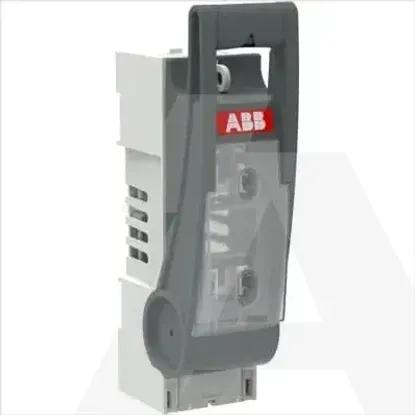

1SEP600116R0001 | XLP1-1P
Code: 1661135
ManufacturerABB
Catalog number1SEP600116R0001
TypeXLP1-1P
CategoryFuse switch disconnector
EAN code7025840086574
Details
- •Low-voltage industrial components
- •Fuse switch disconnector
- •1 KOM
- •ABB
Technical specifications
Cable entryOther
Degree of protection (IP), front sideIP30
Conditioned rated short-circuit current Iq50kA
Type of electrical connection of main circuitBolt connection
Version as emergency stop installationNo
Motor drive integratedNo
Version as main switchYes
Type of control elementOther
Version as safety switchYes
Rated operation power at AC-23, 400 V-kW
Rated short-time withstand current lcw-kA
Suitable for front mountingNo
Suitable for floor mountingNo
Position control elementFront side
Suitable for busbar mountingYes
With error protectionNo
Motor drive optionalNo
Equipped with connectorsYes
Rated permanent current Iu200A
Number of poles1
Suitable for fusesNH1
Max. rated operation voltage Ue AC690V
