Details
- •Circuit breakers and fuses
- •Miniature circuit breaker (MCB)
- •1 KOM
- •ABB
Technical specifications
Rated current80A
Voltage typeAC/DC
Concurrently switching neutral conductorNo
Current limiting class3
Pollution degree3
Degree of protection (IP)IP20
Frequency50 - 60Hz
Number of protected poles4
Over voltage category3
Release characteristicC
Rated insulation voltage Ui440V
Width in number of modular spacings4
Rated voltage400V
Built-in depth69mm
Number of poles (total)4
Connectable conductor cross section solid-core0 - 50mm²
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V20kA
Suitable for flush-mounted installationNo
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V20kA
Additional equipment possibleYes
Rated impulse withstand voltage Uimp4kV
Ambient temperature during operating-25 - 55°C
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6kA
Connectable conductor cross section multi-wired0 - 50mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

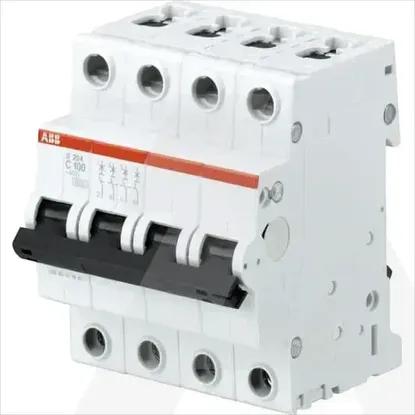

2CDS254001R0804 | S204-C80
