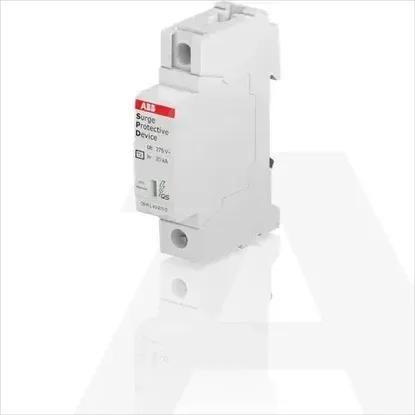

2CTB803871R2300 | OVR T2 40-275 P QS
Code: 1661279
Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •ABB
Technical specifications
Degree of protection (IP)IP20
Mounting methodDIN rail (top hat rail) 35 mm
Construction size1 modular spacing
Max. continuous voltage AC275V
Signalling at the deviceOptic
Number of conductors (without earthing)1
Max. continuous voltage DC-V
Voltage protection level1.25kV
Nominal voltage AC230V
Voltage protection level L-N1.25kV
Max. conductor cross section flexible (fine-strand)16mm²
Max. conductor cross section solid (solid, stranded)25mm²
Integrated backup fuseNo
Nominal voltage DC-V
With remote signalling contactNo
Voltage protection level N-PE1.25kV
Nominal discharge surge current (8/20)20kA
System configuration DCNo
System configuration TNNo
System configuration ITNo
System configuration TN-SNo
System configuration TN-CNo
System configuration TTNo
System configuration otherNo
System configuration TN-C-SNo
Max. PV-voltage-V
Category type 2Yes
Max. discharge surge current (8/20)40kA
Short-circuit breaking capacity (Isccr)100kA
Max. overcurrent protection device, parallel connection (fuse)125A
Max. overcurrent protection device, series connection (fuse)125A
Integrated short-circuit protectionNo
Integrated short-circuit protection selective to fuse gG-A
Leakage-current freeNo
From same serie
