Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •ABB
Technical specifications
Number of conductors (without earthing)3
Nominal discharge surge current (8/20)20kA
Mounting methodDIN rail (top hat rail) 35 mm
Voltage protection level1.8kV
Construction size3 modular spacing
With remote signalling contactNo
Voltage protection level N-PE1.8kV
Category type 2Yes
Degree of protection (IP)IP20
Voltage protection level L-N1.8kV
Max. continuous voltage AC440V
Max. continuous voltage DC-V
Nominal voltage AC230V
Signalling at the deviceOptic
Nominal voltage DC-V
Max. PV-voltage-V
System configuration TTNo
Max. conductor cross section solid (solid, stranded)25mm²
System configuration DCNo
Max. conductor cross section flexible (fine-strand)16mm²
System configuration TN-SNo
System configuration TNYes
System configuration TN-CYes
Integrated backup fuseNo
System configuration otherNo
System configuration TN-C-SNo
Leakage-current freeNo
Max. overcurrent protection device, series connection (fuse)125A
Short-circuit breaking capacity (Isccr)100kA
Max. overcurrent protection device, parallel connection (fuse)125A
Integrated short-circuit protectionNo
System configuration ITYes
Max. discharge surge current (8/20)120kA
Integrated short-circuit protection selective to fuse gG-A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

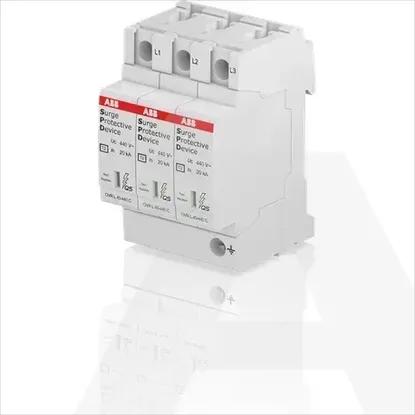

2CTB803873R2800 | OVR T2 3L 40-440 P QS
