Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •ABB
Technical specifications
With remote signalling contactNo
Mounting methodDIN rail (top hat rail) 35 mm
Max. continuous voltage AC440V
Construction size4 modular spacing
Number of conductors (without earthing)4
Nominal voltage DC-V
Voltage protection level1.8kV
Category type 2Yes
Voltage protection level L-N1.8kV
Max. continuous voltage DC-V
Max. PV-voltage-V
Max. conductor cross section solid (solid, stranded)25mm²
Voltage protection level N-PE3.8kV
Integrated backup fuseYes
Max. conductor cross section flexible (fine-strand)16mm²
Signalling at the deviceOptic
System configuration TNYes
System configuration DCNo
Integrated short-circuit protection selective to fuse gG-A
Max. discharge surge current (8/20)160kA
Max. overcurrent protection device, series connection (fuse)125A
System configuration TN-SYes
System configuration TN-CNo
System configuration otherNo
Max. overcurrent protection device, parallel connection (fuse)160A
Short-circuit breaking capacity (Isccr)100kA
Leakage-current freeNo
Integrated short-circuit protectionNo
System configuration TTNo
System configuration TN-C-SYes
System configuration ITNo
Nominal discharge surge current (8/20)20kA
Nominal voltage AC400V
Degree of protection (IP)IP20
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

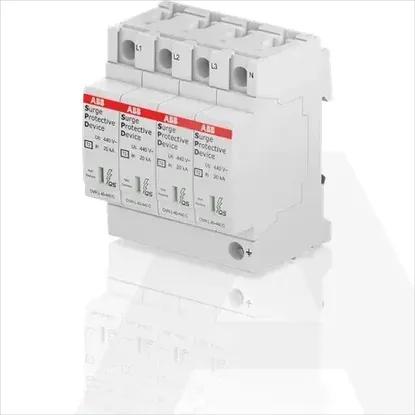

2CTB803873R5100 | OVR T2 4L 40-440 P QS
