Details

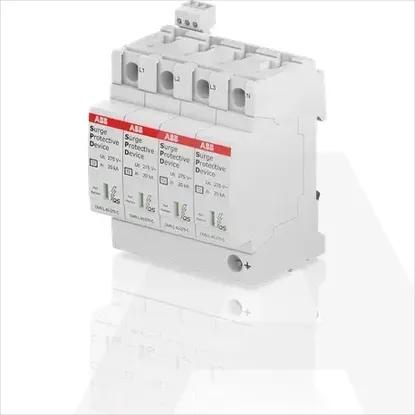

- •ODVODNIK PRENAPONA,TIP T2, 275V, UTICNI, POMOCNI K
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •Minimum order quantity: 1 pcs
- •ABB
Technical specifications
Number of conductors (without earthing)4
Construction size4 modular spacing
Mounting methodDIN rail (top hat rail) 35 mm
With remote signalling contactYes
Voltage protection level L-N1.25kV
Max. continuous voltage AC275V
Category type 2Yes
Voltage protection level1.25kV
Integrated backup fuseNo
Max. conductor cross section solid (solid, stranded)25mm²
System configuration DCNo
Nominal voltage DC-V
Max. PV-voltage-V
Max. conductor cross section flexible (fine-strand)16mm²
Max. continuous voltage DC-V
Voltage protection level N-PE1.25kV
Signalling at the deviceOptic
Max. discharge surge current (8/20)160kA
System configuration ITNo
System configuration TN-CNo
System configuration TN-C-SYes
System configuration otherNo
System configuration TTNo
System configuration TN-SYes
System configuration TNYes
Leakage-current freeNo
Max. overcurrent protection device, parallel connection (fuse)125A
Max. overcurrent protection device, series connection (fuse)125A
Integrated short-circuit protection selective to fuse gG-A
Integrated short-circuit protectionNo
Short-circuit breaking capacity (Isccr)100kA
Nominal discharge surge current (8/20)20kA
Nominal voltage AC230V
Degree of protection (IP)IP20
