Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •ABB
Technical specifications
Number of conductors (without earthing)1
With remote signalling contactNo
Mounting methodDIN rail (top hat rail) 35 mm
Construction size4 modular spacing
Voltage protection level1.25kV
Nominal voltage AC230V
Category type 2Yes
Max. continuous voltage DC-V
Degree of protection (IP)IP20
Max. PV-voltage-V
Voltage protection level N-PE1.25kV
System configuration TN-CNo
System configuration TN-SYes
Max. conductor cross section solid (solid, stranded)25mm²
Voltage protection level L-N1.25kV
System configuration DCNo
System configuration otherNo
Max. conductor cross section flexible (fine-strand)16mm²
System configuration TTNo
System configuration TNYes
Nominal voltage DC-V
Integrated backup fuseNo
Max. continuous voltage AC275V
Signalling at the deviceOptic
Max. overcurrent protection device, parallel connection (fuse)125A
Short-circuit breaking capacity (Isccr)100kA
Max. discharge surge current (8/20)40kA
System configuration TN-C-SYes
Nominal discharge surge current (8/20)20kA
System configuration ITNo
Integrated short-circuit protectionNo
Leakage-current freeNo
Integrated short-circuit protection selective to fuse gG-A
Max. overcurrent protection device, series connection (fuse)125A
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

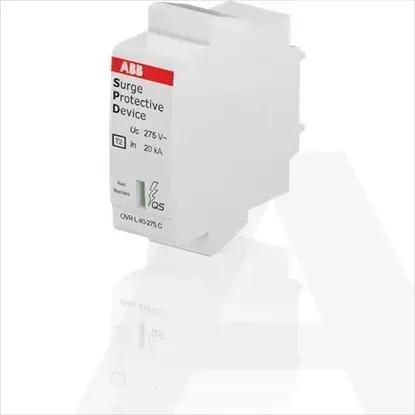

2CTB803876R1000 | OVR T2 40-275 C QS
