Details
- •Earthing, lightning and surge protection
- •Surge protection device for power supply systems
- •1 KOM
- •ABB
Technical specifications
With remote signalling contactNo
Nominal voltage DC-V
Construction sizeOther
Mounting methodOn basic element
Max. continuous voltage AC275V
Nominal voltage AC230V
Nominal discharge surge current (8/20)5kA
Category type 2Yes
Number of conductors (without earthing)1
Voltage protection level0.9kV
Max. continuous voltage DC-V
Signalling at the deviceOptic
Voltage protection level L-N1.4kV
Integrated backup fuseNo
System configuration TN-SYes
System configuration TN-C-SYes
Voltage protection level N-PE1.4kV
System configuration ITNo
Max. conductor cross section flexible (fine-strand)16mm²
System configuration TTYes
System configuration TNYes
System configuration DCNo
System configuration TN-CNo
System configuration otherNo
Degree of protection (IP)IP20
Max. PV-voltage-V
Short-circuit breaking capacity (Isccr)100kA
Max. discharge surge current (8/20)20kA
Max. conductor cross section solid (solid, stranded)25mm²
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user

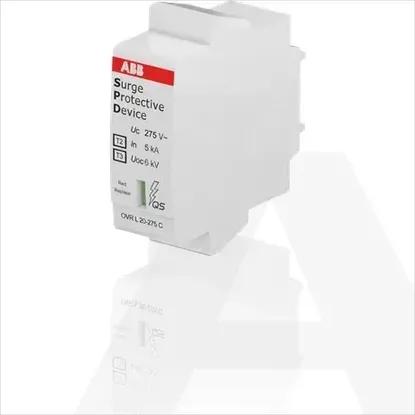

2CTB803876R1200 | OVR T2-T3 20-275 C QS
